SQ808-CN智能模组(QCM2150)

create time: 2024-02-06           over look:918

1.概述

智能模组SQ808系列是一款多网络制式LTE Cat 4智能模组。基于高通QCM2150平台,采用Cortex-A53 处理器,搭载开放的智能Android操作系统。模组采用LCC+LGA 封装,能够与广和通的SC138,SS808,SU808系列兼容,便于客户灵活开发终端设备。

SQ808系列支持多种制式的远距离通讯模式和双频Wi-Fi/BT近距离无线传输技术, 支持GNSS无线定位技术,拥有MIPI/ USB/ UART/ SPI/ I2C等多种扩展接口,可外接HD触摸屏,支持前后双摄像头。是无线智能产品核心系统的优选方案。

SQ808系列可广泛应用于无线智能支付、智能机器人、智能家居、智慧城市等行业领域,是卓越的全球无线智能产品核心系统解决方案。




2.技术规格

基本特性

Package 148 LCC+ 84 LGA
Processor Qualcomm's® QCM2150, ARM® Cortex-A53 Quad-core 64-bit CPU up to 1.3GHz
GPU Adreno 308
Memory(Default) 1GB/2GB LPDDR3 RAM;8GB/16GB eMMC Flash
Dimensions (mm) 41*41*2.8
Frequency LTE-FDD:B1/3/5/8
LTE-TDD:B34/38/39/40/41
WCDMA:B1/8
GSM:900/1800MHz
WiFi 2.4G+5G, 802.11a/b/g/n/ac
BT 4.2 (BR/EDR+BLE)
GNSS GPS/GLONASS/Beidou
OS Android Q
Power Supply 3.5V~4.2V
Weight About10.4g
Operating Temp -30°C - +75°C
Storage Temp -40°C ~ +85°C

传输速率

LTE FDD (Mbps)
Max 150(DL)/ 50(UL)
LTE TDD (Mbps)
Max 130(DL)/ 30(UL)
WCDMA (Mbps)
HSUPA Max 5.76(UL)
HSPA+ Max 42(DL)
TD-SCDMA (Mbps)
Max 4.2(DL)/ 2.2 (UL)
CDMA2000 1X/EVDO (Mbps)
Max 3.1(DL)/Max 1.8(UL)
EDGE/GPRS(Kbps)
EDGE:Max 296(DL)/236.8(UL)
GPRS:Max 107K(DL)/85.6(UL)
WIFI (Mbps)
up to 433

视频处理

Video Encode 1080p@30fps (H.264)
Video Decode 1080p@30fps (H.264, HEVC, VP8)

接口

UART/SPI(Mbps) 3 x UART Up to 4; SPI Up to 50
I2C(Kbps) Up to 400 for TP/Camera/Sensor
USB 1 x USB2.0 high-speed interface,support USB OTG(external 5V power supply)
SDIO Support SD3.0 protocol; support 4 bit SD card
CAM MIPI_CSI 4lane x 2,Up to 2.1G
MIPI_CSI0 4lane x 1 connect 1 main camera,up to 13MP
MIPI_CSI1 4lane x 1 connect 1/2 vice camera
GPIO 21 GPIOs
Display 1 x 4-lane MIPI_DSI
up to 1440x720@60fps
Speaker 1 x Mono,differential 1W CLASS-D
Receiver 1 x Mono, AB
Mic 2 x analog microphones
Handset 1 x Stereo, single-ended output
USIM< 2 x SIM card,support dual-card, dual-standby
Keys Power on/off /Volume up /Volume down /Reset
Advantages
1、Android Q
2、Global Cert
3、Support FHD display
Applications
Mobile POS terminal, Intelligent Robot, Smart Home, Smart City and Smart Industries

认证

Regulation
CCC/RoHS
Operator
NA
Industry
NA
* = 计划/开发中

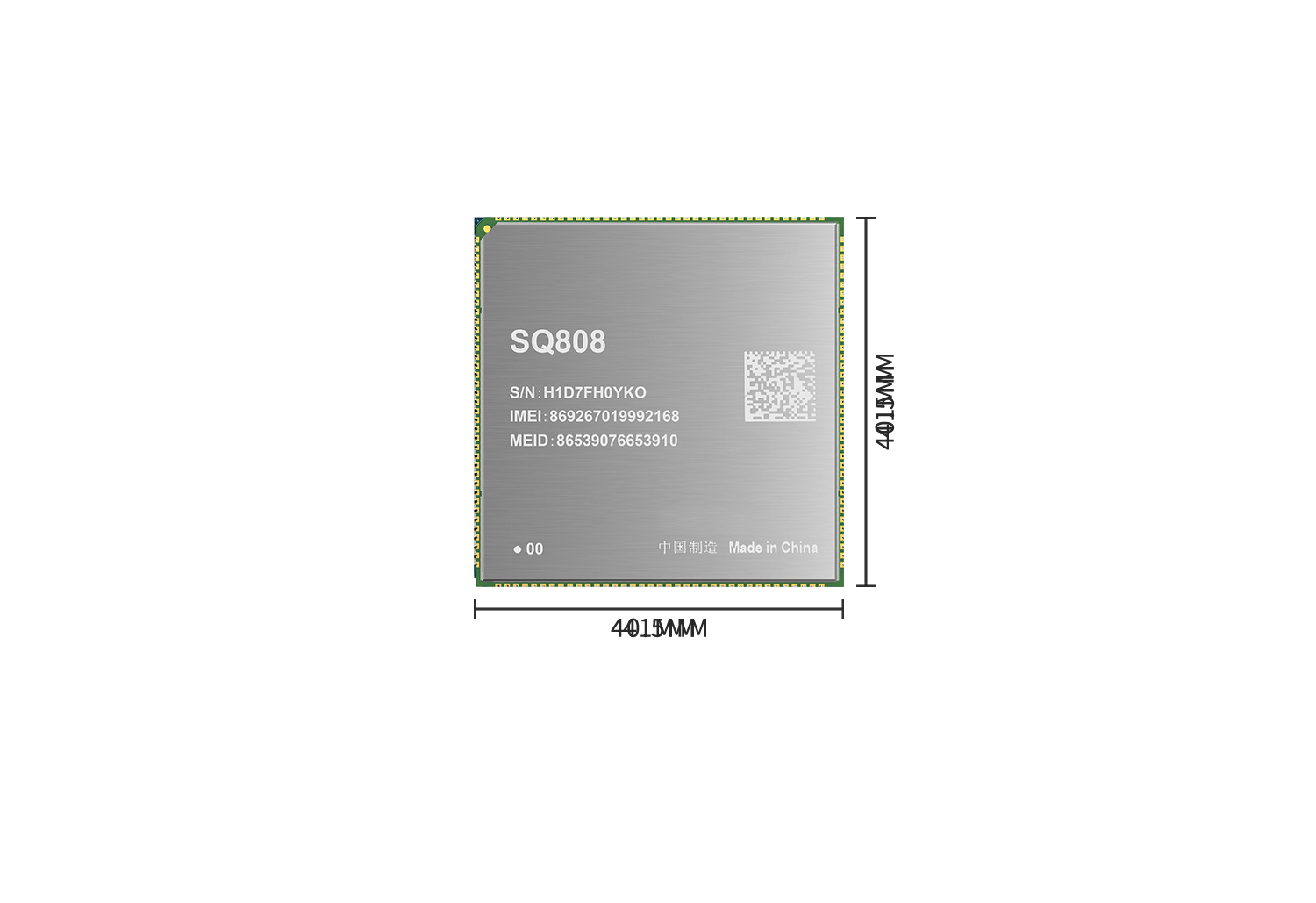

3.产品图片
