S231人工智能主板(RK3399)

create time: 2024-02-05           over look:476

1.概述

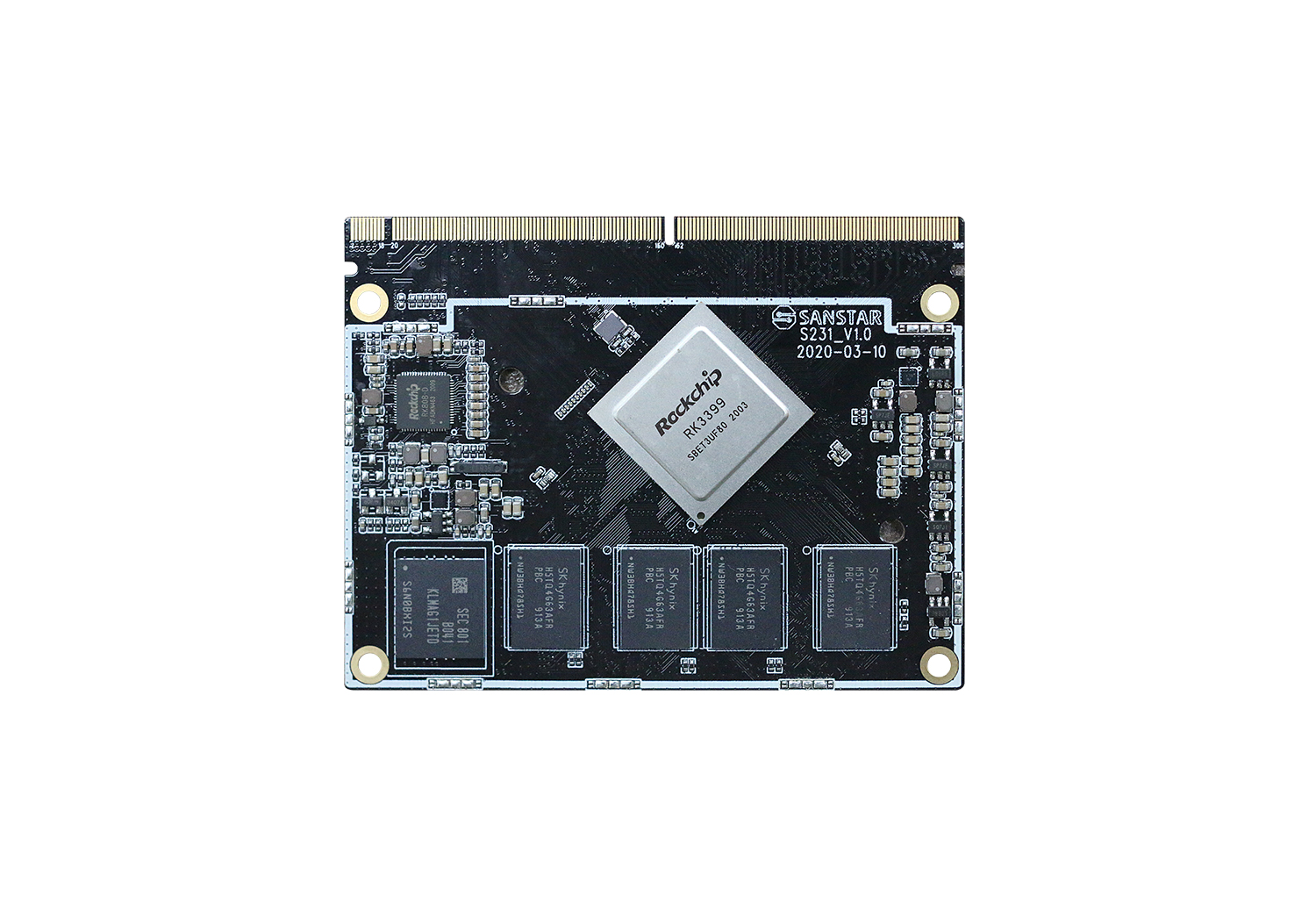

S231核心板采用瑞芯微RK3399六核64位(A72*2+A53*4)高性能处理器,主频高达1.8GHz,采用Mali T864四核高性能GPU。支持扩展双MIPI、HDMI、EDP、DisplayPory显示接口,支持扩展多种网络接口:以太网、WIFI、BT、Mini PCIE,以及USB、URAT、GPIO、I2C等常用接口。

核心板采用MXM3.0-314P接口,沉金工艺引脚,耐腐蚀;4螺柱固定,便于拆装,牢固可靠。采用8层布线工艺,性能稳定可靠,适合于各中小型方案设计公司开发使用。



2.接口详细定义

1

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





3

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





5

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





7

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





9

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





11

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





13

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





15

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





17

VCC_SYS

5V System power supply

Input Voltage 4.8V-5.5V





19

NC

NC







21

NC

NC







23

GND

Power ground

Power ground





25

 MAC_CLK

GPIO3_B3/MAC_CLK/I2C5_SCL

MAC reference clock output, I2Cserial port 5, need external pull-up

3.3V

I/O UP

27

PHY_RST

GPIO3_B7/MAC_CRS/UART3_RX

MAC carrier sense detect

3.3V

I/O UP

29

PHY_PMEB

GPIO0_A1/DDRIO_PWROFF/TCPD_CCDB_E

PHY Power Management Event

1.8V

I/O UP

31

MAC_MDIO

GPIO3_B5/MAC_MDIO/UART1_TX

MAC management command and

data

3.3V

I/O UP

33

MAC_MDC

GPIO3_B0/MAC_MDC/SPI0_CSN1

MAC management clock

3.3V

I/O UP

35

PHY_INT

GPIO3_B2/MAC_RXER/I2C5_SDA

PHY interrupt input, I2C serial port 5,need external pull-up

3.3V

I/O UP

37

GND

GND

GND





39

PHY_TXEN

GPIO3_B4/MAC_TXEN/UART1_RX

MAC transmit enable

3.3V

I/O UP

41

PHY_TXD3

GPIO3_A1/MAC_TXD3/SPI4_TXD

MAC transmit data

3.3V

I/O DOWN

43

PHY_TXD2

GPIO3_A0/MAC_TXD2/SPI4_RXD

MAC transmit data

3.3V

I/O DOWN

45

PHY_TXD1

GPIO3_A5/MAC_TXD1/SPI0_TXD

MAC transmit data

3.3V

I/O DOWN

47

PHY_TXD0

GPIO3_A4/MAC_TXD0/SPI0_RXD

MAC transmit data

3.3V

I/O DOWN

49

PHY_TXCLK

GPIO3_C1/MAC_TXCLK/UART3_RTSN

MAC transmit clock

3.3V

I/O UP

51

GND

GND

GND





53

MAC_RXDV

GPIO3_B1/MAC_RXDV

MAC receive data valid

3.3V

I/O DOWN

55

 MAC_RXD0

GPIO3_A6/MAC_RXD0/SPI0_CLK

MAC receive data

3.3V

I/O UP

57

MAC_RXD1

GPIO3_A7/MAC_RXD1/SPI0_CSN0

MAC receive data

3.3V

I/O UP

59

MAC_RXD2

GPIO3_A2/MAC_RXD2/SPI4_CLK

MAC receive data

3.3V

I/O UP

61

MAC_RXD3

GPIO3_A3/MAC_RXD3/SPI4_CSN0

MAC receive data

3.3V

I/O UP

63

MAC_RXCLK

GPIO3_B6/MAC_RXCLK/UART3_TX

MAC receive clock

3.3V

I/O UP

65

GND

GND

GND





67

GPIO2_B4/DVP_PDN0_H

GPIO2_B4/SPI2_CSN0

Camera power down control output forfront

1.8V

I/O UP

69

GPIO2_A0/CIF_D0

GPIO2_A0/VOP_D0/CIF_D0/I2C2_SDA

Camera data port

1.8V

I/O UP

71

GPIO2_A1/CIF_D1

GPIO2_A1/VOP_D1/CIF_D1/I2C2_SCL

Camera data port

1.8V

I/O UP

73

GPIO2_A2/CIF_D2

GPIO2_A2/VOP_D2/CIF_D2

Camera data port

1.8V

I/O DOWN

75

GPIO2_A3/CIF_D3

GPIO2_A3/VOP_D3/CIF_D3

Camera data port

1.8V

I/O DOWN

77

GPIO2_A4/CIF_D4

GPIO2_A4/VOP_D4/CIF_D4

Camera data port

1.8V

I/O DOWN

79

GPIO2_A5/CIF_D5

GPIO2_A5/VOP_D5/CIF_D5

Camera data port

1.8V

I/O DOWN

81

GPIO2_A6/CIF_D6

GPIO2_A6/VOP_D6/CIF_D6

Camera data port

1.8V

I/O DOWN

83

GPIO2_A7/CIF_D7

GPIO2_A7/VOP_D7/CIF_D7/I2C7_SDA

Camera data port

1.8V

I/O UP

85

GPIO2_B1/CIF_HREF

GPIO2_B1/SPI2_RXD/CIF_HREF/I2C6_SDA

Camera href input,I2C serial port 6, for

battery, need external pull up

1.8V

I/O UP

87

GPIO2_B0/CIF_VSYNC

GPIO2_B0/VOP_CLK/CIF_VSYNC/I2C7_SCL

Camera vsync input

1.8V

I/O UP

89

GND

GND

GND





91

GPIO2_B2/CIF_CLKI

GPIO2_B2/SPI2_TXD/CIF_CLKIN/I2C6_SCL

Camera clock input, I2C serial port

6,for battery, need external pull up

1.8V

I/O UP

93

GPIO2_B3/CIF_CLKO

GPIO2_B3/SPI2_CLK/VOP_DEN/CIF_CLKOUT

Camera clock output

1.8V

I/O UP

95

GND

Power ground

Power ground





97

VCC1V8_DVP

1.8V Power supply

Output Voltage 1.8V,Rated output

current 150mA





99

VCC2V8_DVP

2.8V Power supply

Output Voltage 2.8V,Rated output

current 150mA





101

 VCCA

System startup power supply

Input Voltage 3.3V-5.5V, Rated input

current 50mA





103

SPI1_RXD/GPIO1_A7_U

GPIO1_A7/SPI1_RXD/PMCU_UART4DBG_RX

SPI bus port 1, for FW boot, Uart4

serial port data input, for PMCU debug

3.0V

I/O UP

105

SPI1_TXD/GPIO1_B0_U

GPIO1_B0/SPI1_TXD/PMCU_UART4DBG_TX

SPI bus port 1, for FW boot, Uart4

serial port data output, for PMCU

debug

3.0V

I/O UP

107

SPI1_CLK/GPIO1_B1_U

GPIO1_B1/SPI1_CLK/PMCU_JTAG_TCK

SPI bus port 1, for FW boot JTAG

TCK for PMCU

3.0V

I/O UP

109

SPI1_CSN0/GPIO1_B2_U

GPIO1_B2/SPI1_CSN0/PMCU_JTAG_TMS

SPI bus port 1, for FW boot JTAG

TMS for PMCU

3.0V

I/O UP

111

GND

GND

GND





113

PCIE_REF_CLKP

PCIE_RCLK_100M_P

PCIE 100MHz reference clock as

input to PLL





115

PCIE_REF_CLKN

PCIE_RCLK_100M_N

PCIE 100MHz reference clock as

input to PLL





117

GND

GND

GND





119

PCIE_TX0N

PCIE_TX_0N

PCIE differential lane 0 negative

output





121

PCIE_TX0P

PCIE_TX_0P

PCIE differential lane 0 positive output





123

GND

GND

GND





125

PCIE_RX0_N

PCIE_RX_0N

PCIE differential lane 0 negative input





127

PCIE_RX0_P

PCIE_RX_0P

PCIE differential lane 0 positive input





129

GND

GND

GND





131

PCIE_TX1N

PCIE_TX_1N

PCIE differential lane 1 negative

output





133

PCIE_TX1P

PCIE_TX_1P

PCIE differential lane 1 positive output





135

GND

GND

GND





137

PCIE_RX1_N

PCIE_RX_1N

PCIE differential lane 1 negative input





139

PCIE_RX1_P

PCIE_RX_1P

PCIE differential lane 1 positive input





141

GND

GND

GND





143

PCIE_TX2N

PCIE_TX_2N

PCIE differential lane 2 negative

output





145

PCIE_TX2P

PCIE_TX_2P

PCIE differential lane 2 positive output





147

GND

GND

GND





149

PCIE_RX2_N

PCIE_RX_2N

PCIE differential lane 2 negative input





151

PCIE_RX2_P

PCIE_RX_2P

PCIE differential lane 2 positive input





153

GND

GND

GND





155

PCIE_TX3N

PCIE_TX_3N

PCIE differential lane 3 negative

output





157

 PCIE_TX3P

PCIE_TX_3P

PCIE differential lane 3 positive o





159

GND

GND

GND





161

PCIE_RX3_N

PCIE_RX_3N

PCIE differential lane 3 negative input





163

PCIE_RX3_P

PCIE_RX_3P

PCIE differential lane 3 positive input





165

GND

Power ground

Power ground





167

PCIE_PWR_EN

GPIO1_C1/SPI3_CLK

PCIE Power enable control

3.0V

I/O DOWN

169

TP_INT

GPIO1_C4/I2C8_SDA

Touch pannel interrupt input 0

3.0V

I/O UP

171

 I2C4_SDA

GPIO1_B3/I2C4_SDA

I2C serial port 4,for MEMS, Core

board interiorl pull up Resistor 2.2K

3.0V

I/O UP

173

I2C4_SCL

GPIO1_B4/I2C4_SCL

I2C serial port 4,for MEMS, Core

board interiorl pull up Resistor 2.2K

3.0V

I/O UP

175

PWR_EN

PWR_EN

System power enable signal input 1V-

5.5V





177

POWER_ON

POWER_ON

Power on Signal Input,External

connection Power key, active low





179

GYR_INT_L

GPIO1_D0/DFTJTAG_CLK/TCPD_VBUS_SOURCE2

Gyroscope interrupt input

3.0V

I/O DOWN

181

IR_INT

GPIO0_A6/PWM3A_IR

IR receiver input

1.8V

I/O DOWN

183

DIY_LED

GPIO0_B5/TCPD_VBUS_SOURCE3/TCPD_VBUS_FDIS

user-defined LED Control

1.8V

I/O DOWN

185

RESET_L

RESET

system reset signal Input, External NO

connection(NC)





187

3G_PWR_EN

GPIO0_A2/WIFI_26MHZ

3G/4G power enable

1.8V

I/O DOWN

189

MIPI_RST

GPIO0_B0/SDMMC0_WRPT/T

EST_CLKOUT2

LCD panel reset output

1.8V

I/O UP

191

PWR_KEY_L

GPIO0_A5/EMMC_PWRON

Power key detect input

1.8V

I/O UP

193

WORK_LED

GPIO2_D3/SDIO0_PWREN

System working state refers to LED

1.8V

I/O DOWN

195

HDMI_CEC

GPIO4_C7/HDMI_CECINOUT/

EDP_HOTPLUG

HDMI CEC communication

3.3V

I/O UP

197

PORT_HPD

HDMI_HPD

HDMI Hot Plug Detection interrupt

with 5V, tolerance





199

I2C3_SCL_HDMI

GPIO4_C1/I2C3_SCL_HDMI/U

ART2DBG_TX

I2C serial port 3,for HDMI, need

external pull-up

1.8V

I/O UP

201

I2C3_SDA_HDMI

GPIO4_C0/I2C3_SDA_HDMI/UART2DBG_RX

I2C serial port 3,for HDMI, need

external pull-up

1.8V

I/O UP

203

CHG_CC_INT_L

GPIO1_A2/ISP_FLASHTRIGIN/TCPD_CC1_VCONN_EN

Charge and cc controler interrupt input

1.8V

I/O DOWN

205

RTC_CLK_OUT

RTC_CLK_OUT

32.768K clock output

1.8V



207

GND

GND

GND





209

BT_HOST_WAKE_L

GPIO0_A4/SDIO0_INTn

BT module wake up AP

1.8v

I/O DOWN

211

BT_WAKE_L

GPIO2_D2/SDIO0_DETN/PCIE_CLKREQN

AP wake up BT module

1.8V

I/O UP

213

UART0_RTS

GPIO2_C3/UART0_RTSN

UART0 serial port, for BT module

1.8V

I/O UP

215

UART0_CTS

GPIO2_C2/UART0_CTSN

UART0 serial port, for BT module

1.8V

I/O UP

217

UART0_TXD

GPIO2_C1/UART0_TX

UART0 serial port, for BT module

1.8V

I/O UP

219

UART0_RXD

GPIO2_C0/UART0_RX

UART0 serial port, for BT module

1.8V

I/O UP

221

BT_REG_ON_H

GPIO0_B1/PMUIO2_1833_VOLSEL

BT module power enable, Core board

interiorl pull up Resistor 10K

1.8v

I/O DOWN

223

SDIO0_D1

GPIO2_C5/SDIO0_D1/SPI5_TXD

SDIO0 data port , for WIFI module

1.8V

I/O UP

225

SDIO0_D0

GPIO2_C4/SDIO0_D0/SPI5_RXD

SDIO0 data port , for WIFI module

1.8V

I/O UP

227

SDIO0_D2

GPIO2_C6/SDIO0_D2/SPI5_CLK

SDIO0 data port , for WIFI module

1.8V

I/O UP

229

SDIO0_D3

GPIO2_C7/SDIO0_D3/SPI5_CSN0

SDIO0 data port , for WIFI module

1.8V

I/O UP

231

SDIO0_CLK

GPIO2_D1/SDIO0_CLKOUT/TEST_CLKOUT1

SDIO0 clock output, for WIFI module

1.8V

I/O UP

233

SDIO0_CMD

GPIO2_D0/SDIO0_CMD

SDIO0 command output , for WIFI

module

1.8V

I/O UP

235

WIFI_HOST_WAKE_L

GPIO0_A3/SDIO0_WRPT

WIFI module wake up AP

1.8v

I/O DOWN

237

WIFI_REG_ON_H

GPIO0_B2

WIFI module power enable

1.8v

I/O DOWN

239

GND

GND

GND





241

RTC_CLKO_WIFI

RTC_CLKO_WIFI

32.768K clock output to WIFI

1.8v



243

EXT_EN

EXT_EN

External Power enable output,

Voltage 5V





245

RESET_KEY

RESET_KEY

system reset signal Input, External

connection Reset key, active low





247

TYPEC1_ID

TYPEC1_ID

TYPEC1 ID detect input,200kohm

internal pull up to USB_AVDD_1V8





249

TYPEC0_ID

TYPEC0_ID

TYPEC0 ID detect input,200kohm

internal pull up to USB_AVDD_1V8





251

TP_INT1

GPIO4_D4

Touch pannel interrupt input 1

3.0V

I/O DOWN

253

LCD_RST

GPIO4_D5

LCD panel CABC enable LCD panel

reset output

3.0V

I/O DOWN

255

UART2DBG_TX

GPIO4_C4/UART2DBG_TX

Uart2 serial port data output ,for AP

debug

3.0V

I/O UP

257

UART2DBG_RX

GPIO4_C3/UART2DBG_RX

Uart2 serial port data input, for AP

debug

3.0V

I/O UP

259

PCIE_DISABLE

GPIO4_D3

PCIE Disable

3.0V

I/O DOWN

261

PCIE_CLKREQ

GPIO4_D0/PCIE_CLKREQN

PCIE_CLKREQ

3.0V

I/O UP

263

PCIE_RST

GPIO4_D1/HOTPLUG

PCIE Reset

3.0V

I/O DOWN

265

PCIE_WAKE

GPIO4_D2

AP wake up PCIE

3.0V

I/O DOWN

267

LCD_BL_PWM1

GPIO4_C6/PWM1

LCD panel backlight brightness

control output0

3.0V

I/O DOWN

269

LCD_BL_PWM0

GPIO4_C2/PWM0/VOP1_PWM

_CABC

LCD panel backlight brightness

control output1



I/O DOWN

271

VCCA3V0_CODEC

3.0V Power supply

Output Voltage 3.0V,Rated output

current 300mA





273

VCCA3V0_CODEC

3.0V Power supply

Output Voltage 3.0V,Rated output

current 300mA





275

VCCA1V8_CODEC

1.8V Power supply

Output Voltage 1.8V,Rated output

current 300mA





277

VCCA1V8_CODEC

1.8V Power supply

Output Voltage 1.8V,Rated output

current 300mA





279

GND

GND

GND





281

I2S0_SCLK

GPIO3_D0/I2S0_SCLK

I2S 0 port, for audio codec

1.8V

I/O DOWN

283

I2S0_LRCK_RX

GPIO3_D1/I2S0_LRCK_RX

I2S 0 port, for audio codec

1.8V

I/O DOWN

285

I2S0_LRCK_TX

GPIO3_D2/I2S0_LRCK_TX

I2S 0 port, for audio codec

1.8V

I/O DOWN

287

I2S0_SDI0

GPIO3_D3/I2S0_SDI0

I2S 0 port, for audio codec

1.8V

I/O DOWN

289

I2S0_SDO3

GPIO3_D4/I2S0_SDI1SDO3

I2S 0 port, for audio codec

1.8V

I/O DOWN

291

I2S0_SDO2

GPIO3_D5/I2S0_SDI2SDO2

I2S 0 port, for audio codec

1.8V

I/O DOWN

293

I2S0_SDO1

GPIO3_D6/I2S0_SDI3SDO1

I2S 0 port, for audio codec

1.8V

I/O DOWN

295

I2S0_SDO0

GPIO3_D7/I2S0_SDO0

I2S 0 port, for audio codec

1.8V

I/O DOWN

297

 I2S_CLK

GPIO4_A0/I2S_CLK

I2S MCLK, for both I2S0 and I2S1

1.8V

I/O DOWN

299

I2S1_SCLK

GPIO4_A3/I2S1_SCLK

I2S 1 port, for BT module

1.8V

I/O DOWN

301

I2S1_LRCK_RX

GPIO4_A4/I2S1_LRCK_RX

I2S 1 port, for BT module

1.8V

I/O DOWN

303

I2S1_LRCK_TX

GPIO4_A5/I2S1_LRCK_TX

 I2S 1 port, for BT module

1.8V

I/O DOWN

305

I2S1_SDI0

GPIO4_A6/I2S1_SDI0

I2S 1 port, for BT module

1.8V

I/O DOWN

307

I2S1_SDO0

GPIO4_A7/I2S1_SDO0

I2S 1 port, for BT module

1.8V

I/O DOWN

309

GND

GND

GND





311

I2C1_SDA

GPIO4_A1/I2C1_SDA

I2C serial port 1,for Audio, Core board

interiorl pull up Resistor 2.2K

1.8V

I/O UP

313

I2C1_SCL

GPIO4_A2/I2C1_SCL

I2C serial port 1,for Audio, Core board

interiorl pull up Resistor 2.2K

1.8V

I/O UP

315

EAR_CTL

GPIO4_C5/SPDIF_TX

Earphone output control

3.0V

I/O DOWN

2

GND

Power ground

Power ground





4

GND

Power ground

Power ground





6

GND

Power ground

Power ground





8

GND

Power ground

Power ground





10

GND

Power ground

Power ground





12

GND

Power ground

Power ground





14

GND

Power ground

Power ground





16

GND

Power ground

Power ground





18

GND

Power ground

Power ground





20

NC

NC







22

NC

NC







24

VCC3V3_SYS

3.3V System power supply

Output Voltage 3.3V,Rated output

current 1A





26

VCC3V3_SYS

3.3V System power supply

Output Voltage 3.3V,Rated output

current 1A





28

VCC3V3_SYS

3.3V System power supply

Output Voltage 3.3V,Rated output

current 1A





30

VCC3V3_S3

3.3V Power supply

Output Voltage 3.3V,Rated output

current 200mA





32

VCC3V3_S3

3.3V Power supply

Output Voltage 3.3V,Rated output

current 200mA





34

VCC3V3_S3

3.3V Power supply

Output Voltage 3.3V,Rated output

current 200mA





36

GND

Power ground

Power ground





38

VCC_3V0

3.0V Power supply

Output Voltage 3.0V,Rated output

current 200mA





40

VCC_3V0

3.0V Power supply

Output Voltage 3.0V,Rated output

current 200mA





42

VCC_1V8

1.8V Power supply

Output Voltage 1.8V,Rated output

current 1A





44

VCC_1V8

1.8V Power supply

Output Voltage 1.8V,Rated output

current 1A





46

VCC_RTC

RTC Power supply

Input Voltage 3V-5.5V





48

VCCA1V8_S3

1.8V Power supply

Output Voltage 1.8V,Rated output

current 200mA





50

GND

Power ground

Power ground





52

EDP_AUXN

EDP_AUXN

eDP differential AUX channel positive

output





54

EDP_AUXP

EDP_AUXP

eDP differential AUX channel negative

output





56

GND

GND

GND





58

EDP_TX0N

EDP_TX0N

eDP differential lane 0 negative output





60

EDP_TX0P

EDP_TX0P

eDP differential lane 0 positive output





62

GND

GND

GND





64

EDP_TX1N

EDP_TX1N

eDP differential lane 1 negative output





66

EDP_TX1P

EDP_TX1P

eDP differential lane 1 positive output





68

GND

GND

GND





70

EDP_TX2N

EDP_TX2N

eDP differential lane 2 negative output





72

EDP_TX2P

EDP_TX2P

eDP differential lane 2 positive output





74

GND

GND

GND





76

EDP_TX3N

EDP_TX3N

eDP differential lane 3 negative output





78

EDP_TX3P

EDP_TX3P

eDP differential lane 3 positive output





80

GND

GND

GND





82

SPDIF_TX

GPIO3_C0/MAC_COL/UART3_CTSN

MAC collision detect

3.3V

I/O UP

84

GND

GND

GND





86

TP_RST

GPIO0_B4/TCPD_VBUS_BDIS

Touch pannelreset output

1.8V

I/O DOWN

88

SDMMC0_DET_L

GPIO0_A7/SDMMC0_DET

SDMMC0 detect input

1.8V

I/O UP

90

SDMMC0_D2

GPIO4_B2/SDMMC0_D2/APJTAG_TCK

SDMMC0 data port, JTAG TCK for AP

1.8V/3.0V

auto

I/O UP

92

SDMMC0_D3

GPIO4_B3/SDMMC0_D3/APJTAG_TMS

SDMMC0 data port, JTAG TMS for AP

1.8V/3.0V

auto

I/O UP

94

SDMMC0_CMD

GPIO4_B5/SDMMC0_CMD/MCUJTAG_TMS

SDMMC0 command output , JTAG

TMS for MCU

1.8V/3.0V

auto

I/O UP

96

SDMMC0_CLK

GPIO4_B4/SDMMC0_CLKOUT/MUCJTAG_TCK

SDMMC0 clock output, JTAG TCK for

MCU

1.8V/3.0V

auto

I/O DOWN

98

SDMMC0_D0

GPIO4_B0/SDMMC0_D0/UAR

T2DBG_RX

SDMMC0 data port

1.8V/3.0V

auto

I/O UP

100

SDMMC0_D1

GPIO4_B1/SDMMC0_D1/UART2DBG_TX

SDMMC0 data port

1.8V/3.0V

auto

I/O UP

102

 BL_EN

GPIO1_A1/ISP_SHUTTER_TRIG/TCPD_CC0_VCONN_EN

LCD panel backlight power enable

3.0V

I/O DOWN

104

LCD_EN

GPIO1_A4/ISP_PRELIGHT_TRIG

LCD panel power enable

3.0V

I/O DOWN

106

VCC5V0_TYPEC0_EN

GPIO1_A3/ISP_FLASHTRIGOUT

TYPEC0 5V output power enable

3.0V

I/O DOWN

108

VCC5V0_HOST_EN

GPIO1_A0/ISP_SHUTTER_EN

/TCPD_VBUS_SINK_EN

USB HOST 5V output power enable

3.0V

I/O DOWN

110

TYPEC0_U2VBUSDET

TYPEC0_U2VBUSDET

TYPEC0 connected / vbus power

detect for USB2.0





112

TYPEC1_U2VBUSDET

TYPEC1_U2VBUSDET

TYPEC1 connected / vbus power

detect for USB2.0





114

CIF_PWR

GPIO1_C6/DFTJTAG_TDI/TCPD_VBUS_SOURCE0

Camera power enable0

3.0V

I/O DOWN

116

DVP_PWR

GPIO1_C7/DFTJTAG_TDO/TC

PD_VBUS_SOURCE1

Camera power enable1

3.0V

I/O DOWN

118

GPIO2_D4_D/DVP_PDN1

GPIO2_D4/SDIO0_BKPWR

Camera power down control output for

rear

1.8V

I/O DOWN

120

HP_DET

ADC_IN4

Headphone insert detect input

1.8V



122

FAN_INT

ADC_IN3

Fan insert detect input

1.8V



124

ADC_IN0

ADC_IN0

Battery voltage input, Board ID detect

input

1.8V



126

RECOVER

ADC_IN1

AD keyboard input

1.8V



128

ADC_IN2

ADC_IN2

AD keyboard inputan

1.8V



130

GND

GND

GND





132

HOST1_DM

HOST1_DM

USB HOST1 Data Minus port





134

HOST1_DP

HOST1_DP

USB HOST1 Data Plus port





136

GND

GND

GND





138

HOST0_DM

HOST0_DM

USB HOST0 Data Minus port





140

HOST0_DP

HOST0_DP

USB HOST0 Data Plus port





142

GND

GND

GND





144

TYPEC1_SBU1

TYPEC1_AUXP

TYPEC1 AUX differential TX/RX serial

data





146

TYPEC1_SBU2

TYPEC1_AUXM

TYPEC1 AUX differential TX/RX serial

data.





148

GND

GND

GND





150

TYPEC1_TX2N

TYPEC1_TX2M

TYPEC1 negative half of second

Super Speed,TX differential pair.





152

TYPEC1_TX2P

TYPEC1_TX2P

TYPEC1 positive half of second Super

Speed, TX differential pair.





154

GND

GND

GND





156

TYPEC1_RX2P

TYPEC1_RX2P

TYPEC1 positive half of second Super

Speed, RX differential pair





158

TYPEC1_RX2N

TYPEC1_RX2M

TYPEC1 negative half of second

Super Speed, RX differential pair





160

GND

Power ground

Power ground





162

TYPEC1_SBU1_DC

TYPEC1_AUXP_PD_PU

TYPEC1 AUX pull-up/pull-down

polarity reversal pins.





164

TYPEC1_SBU2_DC

TYPEC1_AUXM_PU_PD

TYPEC1 AUX pull-up/pull-down

polarity reversal pins.





166

USB3_SSTXN

TYPEC1_TX1M

TYPEC1 negative half of first Super

Speed TX, differential pair





168

USB3_SSTXP

TYPEC1_TX1P

TYPEC1 positive half of first Super

Speed TX, differential pair.





170

USB3_SSRXP

TYPEC1_RX1P

TYPEC1 positive half of first Super

Speed RX, differential pair





172

USB3_SSRXN

TYPEC1_RX1M

TYPEC1 negative half of first Super

Speed RX, differential pair





174

USB3_DP

TYPEC1_DP

TYPEC1 Data Plus port





176

USB3_DM

TYPEC1_DM

TYPEC1 Data Minus port





178

TYPEC0_TX2N

TYPEC0_TX2M

TYPEC0 negative half of second

Super Speed,TX differential pair





180

TYPEC0_TX2P

TYPEC0_TX2P

TYPEC0 positive half of second Super

Speed, TX differential pair





182

TYPEC0_RX2P

TYPEC0_RX2P

TYPEC0 positive half of second Super

Speed, RX differential pair.





184

TYPEC0_RX2N

TYPEC0_RX2M

TYPEC0 negative half of second

Super Speed, RX differential pair





186

TYPEC0_DM

TYPEC0_DM

TYPEC0 Data Minus port





188

TYPEC0_DP

TYPEC0_DP

TYPEC0 Data Plus port





190

TYPEC0_TX1N

TYPEC0_TX1M

TYPEC0 negative half of first Super

Speed TX, differential pair.





192

TYPEC0_TX1P

TYPEC0_TX1P

TYPEC0 positive half of first Super

Speed TX, differential pair.





194

TYPEC0_RX1P

TYPEC0_RX1P

TYPEC0 positive half of first Super

Speed RX,differential pair





196

TYPEC0_RX1N

TYPEC0_RX1M

TYPEC0 negative half of first Super

Speed RX, differential pair.





198

TYPEC0_SBU1

TYPEC0_AUXP

TYPEC0 AUX differential TX/RX serial

data.





200

TYPEC0_SBU2

TYPEC0_AUXM

TYPEC0 AUX differential TX/RX serial

data.





202

TYPEC0_SBU2_DC

TYPEC0_AUXM_PU_PD

TYPEC0 AUX pull-up/pull-down

polarity reversal pins.





204

TYPEC0_SBU1_DC

TYPEC0_AUXP_PD_PU

TYPEC0 AUX pull-up/pull-down

polarity, reversal pins.





206

GND

GND

GND





208

HDMI_TX2P

HDMI_TX2P

HDMI channel 2 differential serial data

positive





210

HDMI_TX2N

HDMI_TX2N

HDMI channel 2 differential serial data

negative





212

HDMI_TX1P

HDMI_TX1P

HDMI channel 1 differential serial data

positive





214

HDMI_TX1N

HDMI_TX1N

HDMI channel 1 differential serial data

negative





216

HDMI_TX0P

HDMI_TX0P

HDMI channel 0 differential serial data

positive





218

HDMI_TX0N

HDMI_TX0N

HDMI channel 0 differential serial data

negative





220

HDMI_TXCP

HDMI_TCP

HDMI differential pixel clock positive





222

HDMI_TXCN

HDMI_TCN

HDMI differential pixel clock negative





224

GND

GND

GND





226

 MIPI_TX0_D0P

MIPI_TX0_D0P

MIPI-DSI0 differential lane 0 positive





228

MIPI_TX0_D0N

MIPI_TX0_D0N

MIPI-DSI0 differential lane 0 negative





230

GND

GND

GND





232

MIPI_TX0_D1P

MIPI_TX0_D1P

MIPI-DSI0 differential lane 1 positive





234

 MIPI_TX0_D1N

MIPI_TX0_D1N

MIPI-DSI0 differential lane 1 negative





236

GND

GND

GND





238

MIPI_TX0_CLKP

MIPI_TX0_CLKP

MIPI-DSI0 differential clock lane

positive





240

MIPI_TX0_CLKN

MIPI_TX0_CLKN

MIPI-DSI0 differential clock lane

negative





242

GND

GND

GND





244

MIPI_TX0_D2P

MIPI_TX0_D2P

MIPI-DSI0 differential lane 2 positive





246

MIPI_TX0_D2N

MIPI_TX0_D2N

MIPI-DSI0 differential lane 2 negative





248

GND

GND

GND





250

 MIPI_TX0_D3P

MIPI_TX0_D3P

MIPI-DSI0 differential lane 3 positive





252

MIPI_TX0_D3N

MIPI_TX0_D3N

MIPI-DSI0 differential lane 3 negative





254

GND

GND

GND





256

MIPI_RX0_D0P

MIPI_RX0_D0P

MIPI-CSI0 differential lane 0 positive





258

MIPI_RX0_D0N

MIPI_RX0_D0N

MIPI-CSI0 differential lane 0 negative





260

GND

GND

GND





262

MIPI_RX0_D1P

MIPI_RX0_D1P

MIPI-CSI0 differential lane 1 positive





264

MIPI_RX0_D1N

MIPI_RX0_D1N

MIPI-CSI0 differential lane 1 negative





266

GND

GND

GND





268

MIPI_RX0_CLKP

MIPI_RX0_CLKP

MIPI-CSI0 differential clock lane

positive





270

MIPI_RX0_CLKN

MIPI_RX0_CLKN

MIPI-CSI0 differential clock lane

negative





272

GND

Power ground

Power ground





274

MIPI_RX0_D2P

MIPI_RX0_D2P

MIPI-CSI0 differential lane 2 positive





276

MIPI_RX0_D2N

MIPI_RX0_D2N

MIPI-CSI0 differential lane 2 negative





278

GND

GND

GND





280

 MIPI_RX0_D3P

MIPI_RX0_D3P

MIPI-CSI0 differential lane 3 positive





282

MIPI_RX0_D3N

MIPI_RX0_D3N

MIPI-CSI0 differential lane 3 negative





284

GND

GND

GND





286

MIPI_TX1/RX1_D3P

MIPI_TX1/RX1_D3P

MIPI-DSI1/CSI1 differential lane 3

positive





288

MIPI_TX1/RX1_D3N

MIPI_TX1/RX1_D3N

MIPI-DSI1/CSI1 differential lane 3

negative





290

GND

GND

GND





292

MIPI_TX1/RX1_D2P

MIPI_TX1/RX1_D2P

MIPI-DSI1/CSI1 differential lane 2

positive





294

MIPI_TX1/RX1_D2N

MIPI_TX1/RX1_D2N

MIPI-DSI1/CSI1 differential lane 2

negative





296

GND

GND

GND





298

MIPI_TX1/RX1_CLKP

MIPI_TX1/RX1_CLKP

MIPI-DSI1/CSI1 differential clock lane

positive





300

MIPI_TX1/RX1_CLKN

MIPI_TX1/RX1_CLKN

MIPI-DSI1/CSI1 differential clock lane

negative





302

GND

GND

GND





304

MIPI_TX1/RX1_D1P

MIPI_TX1/RX1_D1P

MIPI-DSI1/CSI1 differential lane 1

positive





306

MIPI_TX1/RX1_D1N

MIPI_TX1/RX1_D1N

MIPI-DSI1/CSI1 differential lane 1

negative





308

GND

GND

GND





310

MIPI_TX1/RX1_D0P

MIPI_TX1/RX1_D0P

MIPI-DSI1/CSI1 differential lane 0

positive





312

MIPI_TX1/RX1_D0N

MIPI_TX1/RX1_D0N

MIPI-DSI1/CSI1 differential lane 0

negative




3.产品图片


next: S230人工智能主板(RK3399)
