SC126-CN智能模组(QCM2290)

create time: 2024-02-06           over look:1118

1.概述

SC126系列是一款支持多网络制式LTECat 4智能模组。采用11纳米先进工艺,四核Cortex-A53架构的高通QCM2290平台进行开发,具有丰富的多媒体处理能力;并且搭载开放的智能Android操作系统,可外接FHD (1920 x 1080@300fps)触摸屏,支持多路摄像头应用,支持集成人脸识别,AI智能算法。模组采用LCC+LGA封装,可便于客户灵活开发终端设备。

SC126系列产品支持多种制式的远距离蜂窝通讯模式和双频Wi-Fi/Bluetooth近距离无线传输技术,支持GNSS无线定位技术,拥有MIPI/CSI/USB/UART/SPI/I2C等多种扩展接口。

SC126系列可广泛应用于无线智能支付终端、智能机器人、工业手持设备、行车记录仪等行业设备,是卓越的全球无线智能产品解决方案。




2.技术规格

基本特性

Package 146 LCC+ 116 LGA
Processor Qualcomm's® QCM2290, ARM® Cortex-A53 Quad-core 64-bit CPU up to 2.0GHz
GPU Adreno 702
Memory(Default) 2GB LPDDR4X RAM;16GB eMMC Flash
Dimensions (mm) 40.5 *40.5 *2.8
Frequency LTE-FDD:B1/3/5/8
LTE-TDD:B34/38/39/40/41
WCDMA:B1/8
GSM:900/1800MHz
WiFi 2.4G+5G, 802.11a/b/g/n/ac
BT BT5.0 (BR/EDR+BLE)
GNSS GPS/GLONASS/Beidou
OS Android S/T
Power Supply 3.5V~4.2V
Weight About10.4g
Operating Temp -25°C - +75°C
Storage Temp -40°C ~ +85°C

传输速率

LTE FDD (Mbps)
Max 150(DL)/ 50(UL)
LTE TDD (Mbps)
Max 130(DL)/ 30(UL)
WCDMA (Mbps)
HSUPA Max 11(UL)
HSPA+ Max 42(DL)
TD-SCDMA (Mbps)
Max 4.2(DL)/ 2.2 (UL)
CDMA2000 1X/EVDO (Mbps)
Max 3.1(DL)/Max 1.8(UL)
EDGE/GPRS(Kbps)
EDGE:Max 296(DL)/236.8(UL)
GPRS:Max 107K(DL)/85.6(UL)
WIFI (Mbps)
up to 433

视频处理

Video Encode 1080p30 8-bit HEVC (H.265)
Video Decode 1080p30 8-bit HEVC (H.265), VP9

接口

UART/SPI(Mbps) 3 x UART Up to 4; SPI Up to 50
I2C(Kbps) Up to 400 for TP/Camera/Sensor
USB 1 x USB 2.0/3.1 support OTG(external 5V power supply)
SDIO Support SD3.0 protocol; support 4 bit SD card
CAM 2 x MIPI_CSI (4/4 or 4/2/1),ISPx2(13MP+13MP or 25MP)
GPIO 21 GPIOs
Display 1 x 4-lane MIPI_DSI up to 1680x720@60fps
Speaker 1 x Mono,differential 1W CLASS-D
Receiver 1 x Mono, AB
Mic 2 x analog microphones
Handset 1 x Stereo, single-ended output
USIM 2 x SIM card,support dual-card, dual-standby
Keys Power on/off /Volume up /Volume down /Reset
Advantages
1、Android S with a long life cycle
2、Global version planning
3、Support FHD display
Applications
Mobile POS terminal, Intelligent Robot, Smart Home, Smart City and Smart Industries

认证

Regulation
CCC/SRRC/NAL/RoHS
Operator
NA
Industry
NA
* = 计划/开发中

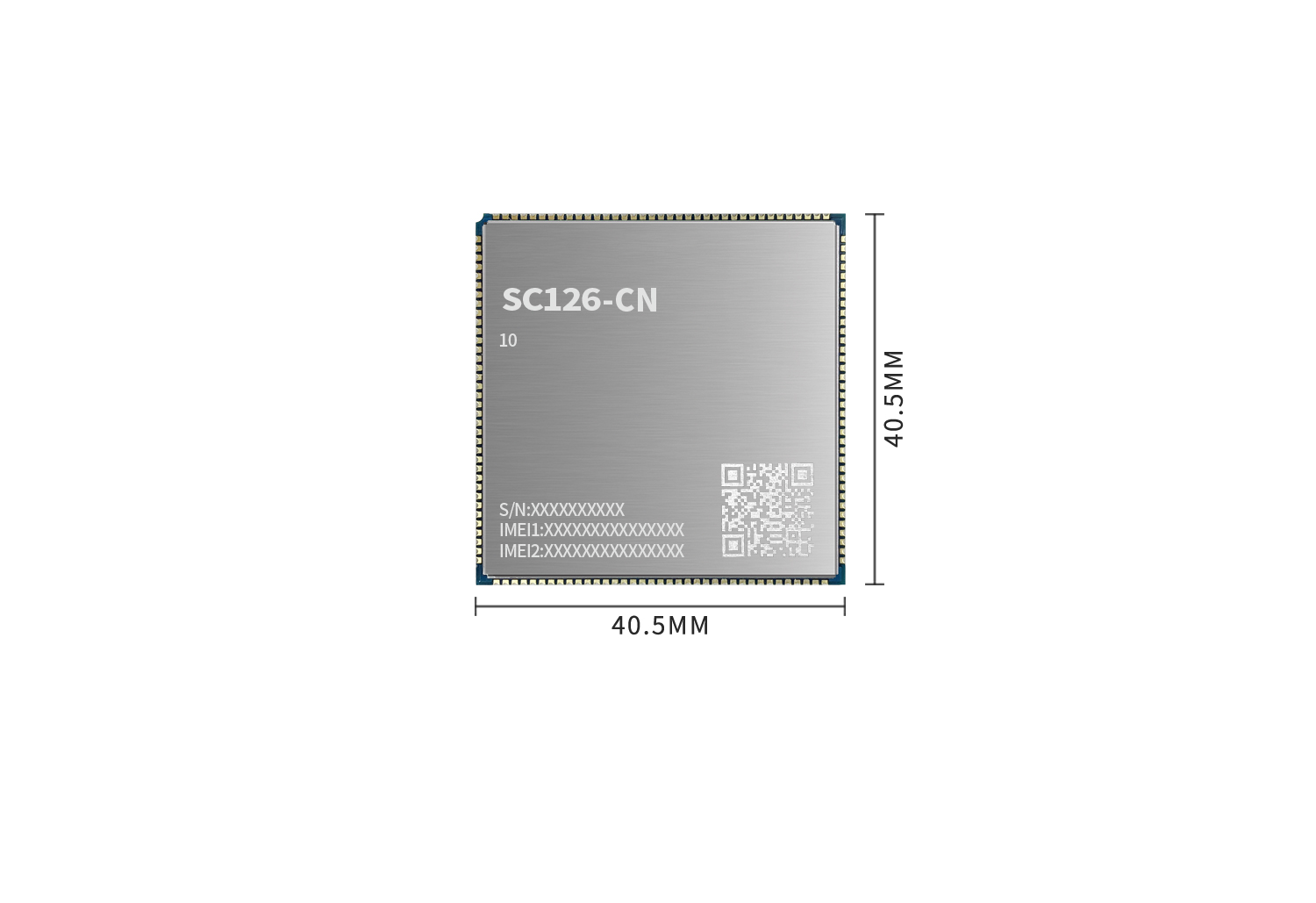

3.产品图片
