SC138-CN智能模组(QCM6125)

create time: 2024-02-06           over look:1439

1.概述

智能模组SC138系列是一款多网络制式LTE Cat 4智能模组。基于高通QCM6125平台设计,采用高端八核 ( 4*A73 2.0G + 4*A53 1.8G )处理器,支持vDSP,内部集成高性能图形引擎,支持多路摄像头录入,可以流畅播放4K视频。模组采用LCC+LGA 封装,能够与广和通的SS808,SQ808,SU808系列兼容,便于客户灵活开发终端设备。

SC138系列支持多种制式的远距离通讯模式和双频Wi-Fi/BT近距离无线传输技术,支持GNSS无线定位技术。SC138预置开放的Android操作系统,拥有MIPI/ USB/ UART/ SPI/ I2C等多种扩展接口,是无线智能产品核心系统的优选方案。

SC138系列智能模块可广泛应用于无线智能支付、智能机器人、智能家居、智慧城市等行业领域,是全球卓越的无线智能产品核心系统解决方案。


2.技术规格

基本特性

Package
148 LCC+128 LGA
Processor
Qualcomm's® QCM6125, Quad-core ARM® Cortex™-A73,2.0GHz+Quad-core ARM Cortex™-A53,1.8GHz
GPU
Adreno 610
Memory(Default)
2GB/4GB LPDDR4X RAM; 32GB/64GB eMMC&UFS
Dimension (mm)
41.0 x 41.0 x 2.8
LTE FDD
B1/3/5/8
LTE TDD
B34/38/39/40/41
WCDMA B1/8
GSM
900/1800MHz
WiFi 2.4G+5G, 802.11 a/b/g/n/ac
BT BT 5.0
GNSS GPS/Beidou/GLONASS
OS
Android Q/R/S
Power Supply
DC 3.5 ~ 4.2V
Weight About 9.6g
Operating Temp
-30°C ~ +75°C
Storage Temp
-40°C ~ +85°C

传输速率

LTE FDD (Mbps)
Max 150(DL)/Max 75(UL)
LTE TDD (Mbps)
Max 130(DL)/Max 45(UL)
UMTS/HSPA/HSPA+ (Mbps)
HSUPA: Max 5.7(UL)
HSPA+: Max 42(DL)
TD-SCDMA (Mbps)
NA
CDMA EVDO (Mbps)
NA
EDGE/GPRS(Kbps)
EDGE: Max 296(DL)/236.8 (UL)
GPRS: Max 107(DL)/85.6(UL)
WIFI (Mbps)
up to 433

视频处理

Video Encode
4K@30fps (H.264, HEVC, VP9)
Video Decode
4K@30fps (H.264, HEVC, VP8)

接口

UART/SPI(Mbps)
3 x UART Up to 4
I2C(Kbps)
I2C Up to 3.4Mbps
USB 1 x USB2.0/3.1, Support OTG, Support DP over Type-C
SDIO 1 x SDIO
CAM Three 4-lane CSIs (4/4/4 or 4/4/2/1)
D-PHY 1.2 at 2.5 Gbps per lane
or C-PHY 1.0 at 10 Gbps (3.42 Gbps/trio)
GPIO 33 GPIOs
Display 1 x 4-lane MIPI_DSI; up to (2520x1080)@60fps
Speaker 1.5W on 8Ω load in Class-D mode
Receiver 1 x Mono, AB
Mic 2 x analog microphones
Handset Stereo CLASS AB
USIM 2 x SIM card,support dual-SIM dual-standby
Keys Power on/off /Volume up /Volume down /Reset
Advantages 1、Android Q/R/S
2、High computation capability and support 4K video coding
3、Dual LCDs for independent display DSI (2520x1080@60fps+1920x1080@60fps over DP)
Applications Smart Cash Register,Security Monitoring, High-end Police or Law Enforcement Equipment, Telematics, Hand-held sets

认证

Regulation
RoHS/CCC/HF/SRRC
Operator
NA
Industry
NA
* = 计划/开发中

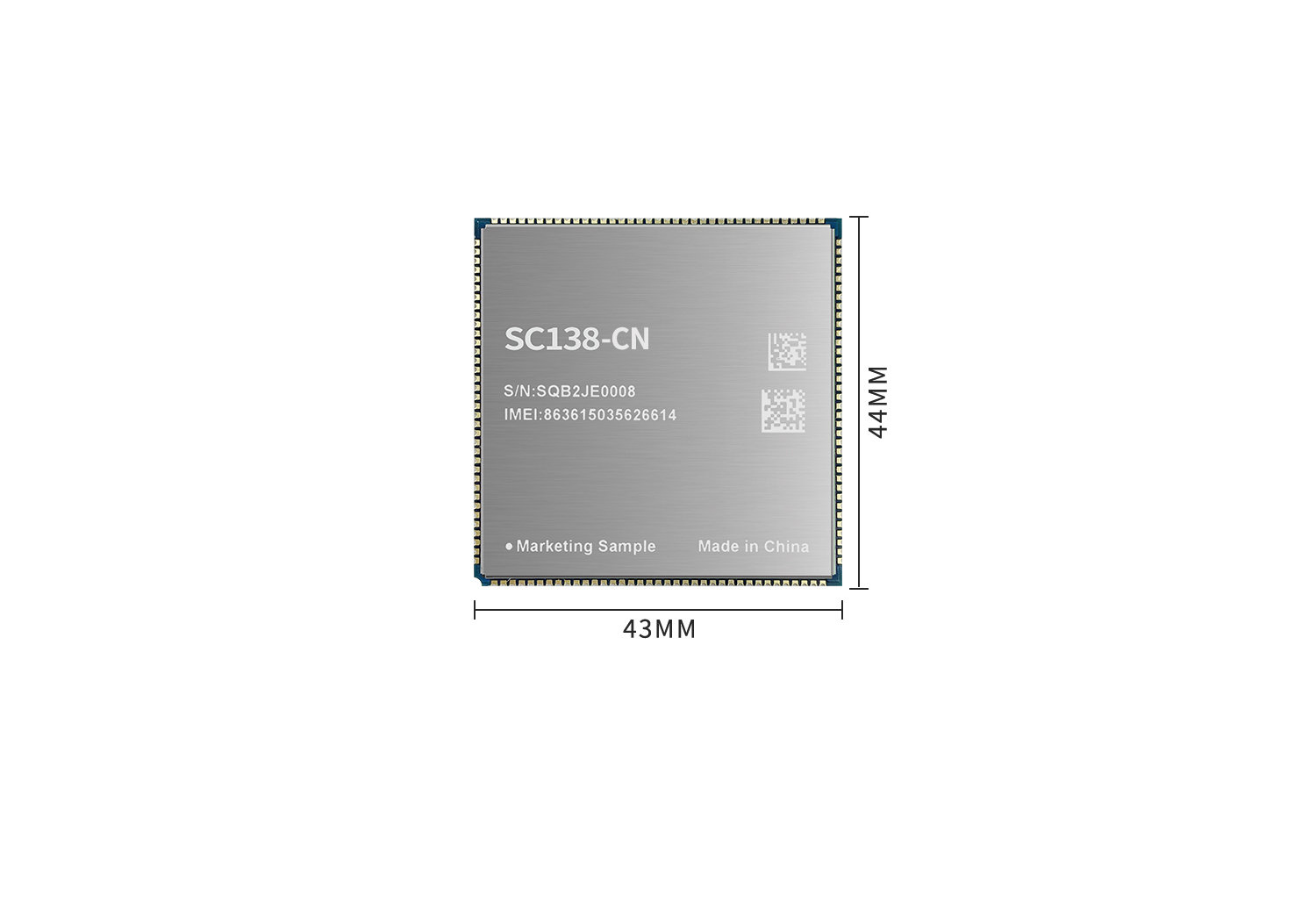

3.产品图片
