SC820-CN智能模组(MSM8953)

create time: 2024-02-06           over look:819

1.概述

智能模组SC820是基于高通MSM8953平台设计,具备8核 Cortex-A53处理器,2.0GHz主频,内部集成高性能图形引擎,可以流畅播放1080p视频,支持双屏显示;支持7种制式的远距离通讯模式和双频WIFI/BT近距离无线传输技术,支持GNSS无线定位技术。

智能模组SC820搭载开放的Android操作系统,拥有MIPI/USB/UART/SPI/I2C等多种扩展接口,是无线智能产品核心系统的优选方案。



2.技术规格

基本特性

Package 156 LCC+ 76 LGA
Processor Qualcomm's® MSM8953, ARM® Cortex™-A53 8-core 64-bit CPU up to 2GHz, 4-core 1MB L2 cache, 4-core 512KB L2
GPU Adreno 506
Memory(Default) 2GB LPDDR3 RAM;16GB eMMC Flash
Dimensions (mm) 43.5 x 45.0 x 2.85
Frequency LTE-FDD: B1/3/5/8
LTE-TDD: B34/38/39/40/41
WCDMA:B1/8
CDMA2000 1X/EVDO:BC0/EVDO Rev.A
TD-SCDMA:B34/39
GSM: 900/1800MHz
WiFi 2.4G+5G, 802.11a/b/g/n/ac
BT BT2.1+EDR/3.0/4.2 LE
GNSS GPS/GLONASS/Beidou
OS Android N
Power Supply DC 3.5V~4.35V
Weight About 12.3g
Operating Temp -30°C - +75°C
Storage Temp -40°C ~ +85°C

传输速率

LTE FDD (Mbps)
Max 150(DL)/ 50(UL)
LTE TDD (Mbps)
Max 130(DL)/ 30(UL)
WCDMA (Mbps)
HSUPA Max 5.76(UL)
HSPA+ Max 42(DL)
TD-SCDMA (Mbps)
Max 4.2(DL)/ 2.2 (UL)
CDMA2000 1X/EVDO (Mbps)
Max 3.1(DL)/Max 1.8(UL)
EDGE/GPRS(Kbps)
EDGE:Max 296(DL)/236.8(UL)
GPRS:Max 107K(DL)/85.6(UL)
WIFI (Mbps)
up to 433

视频处理

Video Encode 4K@30fps (HEVC/H.264/VP8/VP9/MPEG4/VC1)
Video Decode 4K@30fps (HEVC/H.264/VP8/MPEG4/ SW VP9)

接口

UART/SPI(Mbps) 3 x UART Up to 4;1 x SPI
I2C(Kbps) Up to 400 for TP/Camera/Sensor
USB 1 x USB3.0/2.0 high speed
Support USB OTG(external 5V power supply)
SDIO 1 x SDIO 3.0
CAM MIPI_CSI x 2 up to 2.1Gbps
MIPI_CSI 4 lane x 1 (up to 24MP)
MIPI_CSI 2 lane x 1 (up to 8MP)
GPIO 25 GPIOs
Display 2 x 4-lane MIPI_DSI
up to (1920x1200)@60fps
Speaker 1 x Mono,differential 1W CLASS-D
Receiver 1 x Mono, AB
Mic 2 x analog microphones
Handset 1x Stereo, single-ended output
USIM 2 x SIM card,support dual-SIM dual-standby(Default Single)
Keys Power on/off /Volume up /Volume down /Reset
Advantages
1、Octa-core A53 processor with up to 2.0 GHz CPU Clock Speed
2、Android Nougat
3、Long-term lifecycle supply guarantee
Applications
Automotive aftermarket, High-end Police or Law Enforcement Equipment

认证

Regulation
RoHS/CCC
Operator
NA
Industry
NA
* = 计划/开发中

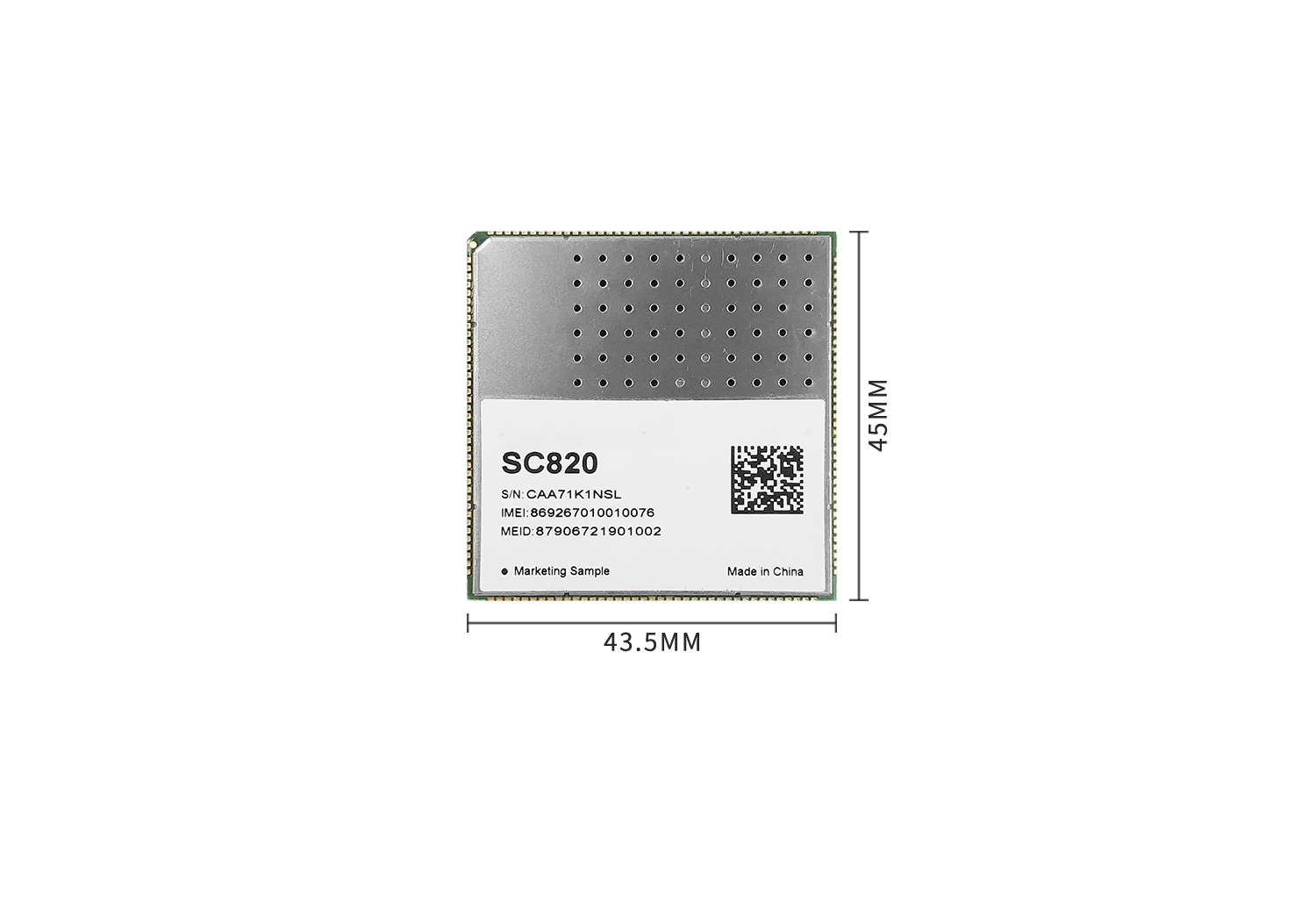

3.产品图片
